Container   Equipment   Open Top Container

Equipment

Open Top Container

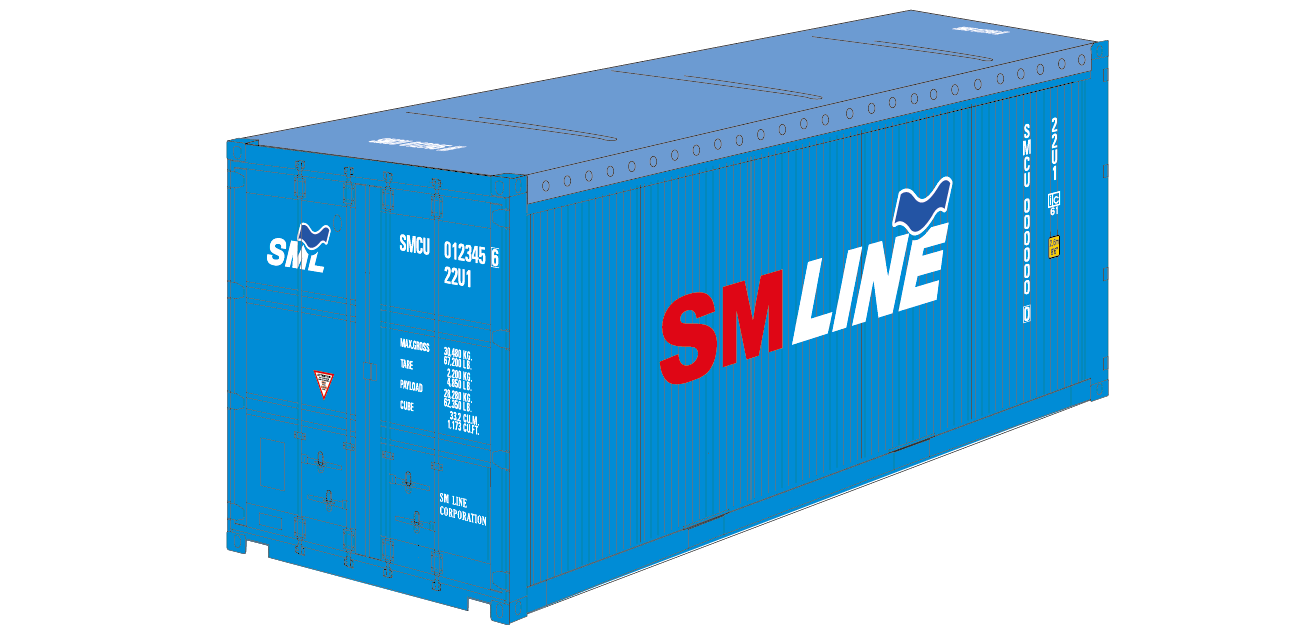

20ft Open Top Containers

Internal Demension
Length5,893 mm19ft 4.21in
Width2,346 mm7ft 8.36in
Height2,384 mm7ft 9.74in
Door Opening
Width2,338 mm7ft 8.05in
Height2,244 mm7ft 4.35in
Weight
Max Gross30,480 kg67,200 lb
Tare weight2,320 kg5,120 lb
Max Payload28,160 kg62,080 lb
Load Capacity
33.0 cubic meters1,155 cubic feet

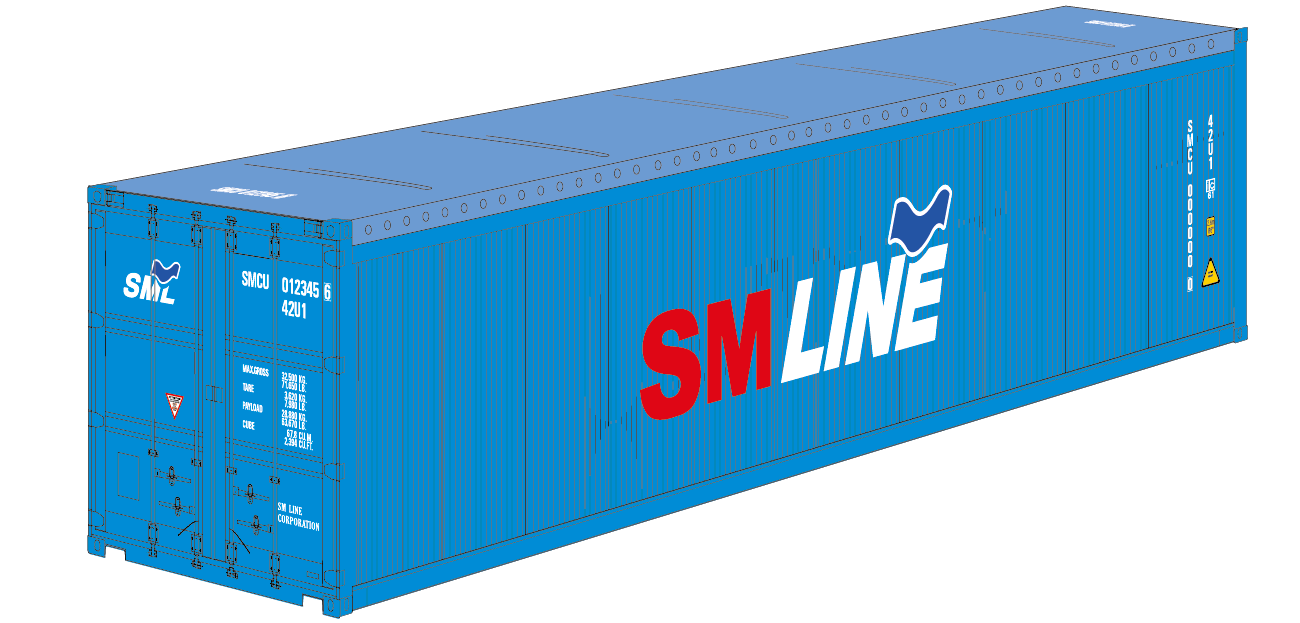

40ft Open Top Containers

Internal Demension
Length12,032 mm39ft 5.31in
Width2,346 mm7ft 8.36in
Height2,381 mm7ft 9.74in
Door Opening
Width2,338 mm7ft 8.05in
Height2,244 mm7ft 4.35in
Weight
Max Gross30,480 kg67,200 lb
Tare weight4,120 kg9,080 lb
Max Payload26,360 kg58,120 lb
Load Capacity
66.0 cubic meters2,346 cubic feet

Open Top Container

The Roof consists of removable bows and a removable tarpaulin
The door header can be swivel out
Easy to pack and unpack the container from above or through the door by crane
The roof is open and the door header is swivel out
